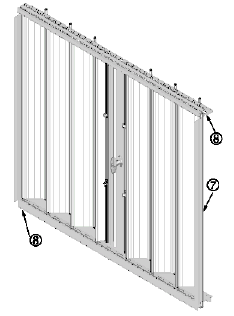

| Tech Drawings: Accordion Shutters
| |
Component |
Benefit |
| 1. |
Extruded Aluminum Interlocking Vertical Shutter Blade |
6063-T6 Alloy. Vertical Design Allows for Maximum Strength against Impact |
| 2. |
Male and Female Locking Strips |
Specifically Engineered Male/Female design for Weather Proof Locking |
| 3. |
Key Lock |
Security Key Lock. Integral Part of 5-Point Locking System |
| 4. |
Locking Vertical Pins |
Thumbscrew Vertical Sliding Locking Pins for Added Security |
| 5. |
Silicone Impregnated Wheel Carriage |
Self lubricating Nylon Glide Wheels for Easy Opening and Closing |
| 6. |
Top & Bottom Stud Pin |
410 Stainless Xylan Coated Screws with Nylon Spacer bushing |
| 7. |
Extruded Starter Strip |
6063-T6 Alloy Extruded 180Degree Starter |
| 8. |
Extruded Aluminum Top/ Bottom tack (Ceiling/Floor or Wall Mount) |
Ceiling/Floor Mounts used on balcony enclosures Adjustable floor track fits to floor contours. Wall mounts used for doors windows. |
